Mini Ec11 Encoder with Dual Function and Analog Output

Ask Lasest Price

Add to Cart

Product Details
Company Profile

Mini Ec11 Encoder with Dual Function and Analog Output

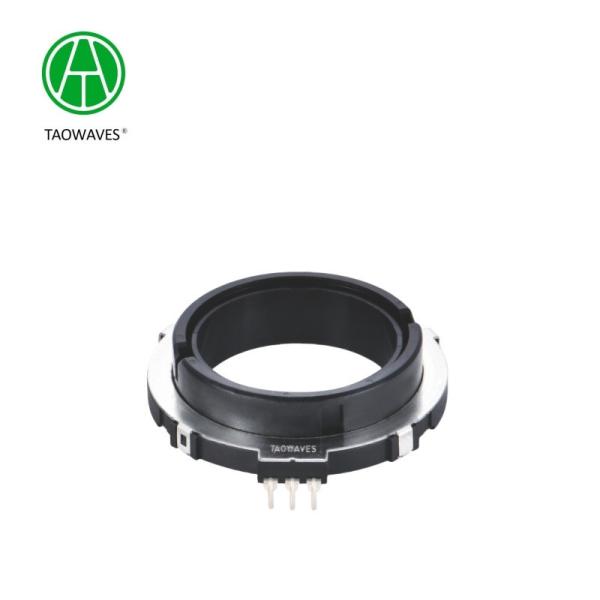

43mm Incremental Rotary Hollow Encoder Ring Encoder Customized Hollow Shaft Encoder

EC43 Series Product Specifications

1.Electrical Characteristics
Rated voltage:	DC 5V
Resolution:	14pulses/360°
Insulation resistance:	10MΩ Min at DC 110V
Dielectric strength:	1 minute at AC110V
Phase Difference:	20≥4.0ms

2.Mechanical Characteristics
Total ratational angle:	360°(Endless)
Detent torque:	17.5±12.5mN.m.(175±125gf.cm)
Push-Pull Strength of shaft	10KG

3.Endurance Characteristics
Rotational life:	30,000cycles
Operating temperature range:	-20ºC to 80ºC
Storage temperature range:	-40ºC to+85ºC

Our Factory
Mini Ec11 Encoder with Dual Function and Analog Output

Application:
Mini Ec11 Encoder with Dual Function and Analog Output

FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.
2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.
3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)
4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.
5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.
6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.
