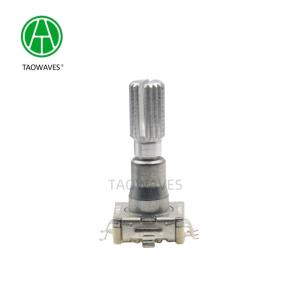

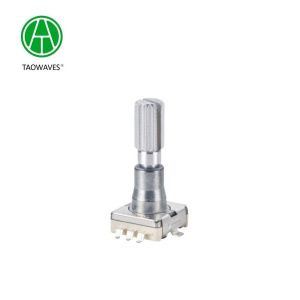

Axonia Ec11e Series Plug-in Rotary Encoder Ec11e15244G1 Model 11mm Metal Shaft Single Shaft Knurled Switch Electronic Component

Ask Lasest Price

Add to Cart

Product Details
Company Profile

Axonia Ec11e Series Plug-in Rotary Encoder Ec11e15244G1 Model 11mm Metal Shaft Single Shaft Knurled Switch Electronic Component

EC11 Rotary Incremental Switch Encoder with Long Switch Travel Metal Shaft

EC11A01R03

Incremental Encoder
Size: 11mm
Switch Travel: 0.5mm
Pulses: 15/20
Number of detent: 0/20/30
Rotational life: 30000cycles

EC11 Series Product Specifications

1.Electrical Characteristics
Rated voltage:	DC 5V
Resolution:	15/20pulses/360°
Insulation resistance:	100MΩ Min at DC 250V
Dielectric strength:	1 minute at AC300V
Phase Difference:	15P≥5.6ms / 20P≥4.0ms

2.Mechanical Characteristics
Total ratational angle:	360°(Endless)
Detent torque:	2~15mN.m.(20~150gf.cm)
Shaft wobble:	0.7*L/30mm p-p Max(L: mounting height)
Push-Pull Strength of shaft	8KG
Operation fore of switch:	500±200gf
Travel of switch:	0.5±0.3 mm

3.Endurance Characteristics
Rotational life:	30,000cycles
Push-life:	30,000cycles
Operating temperature range:	-30ºC to+80ºC
Storage temperature range:	-40ºC to+85ºC

Our Factory

Ec11e15244G1 Model 11mm Metal Shaft Ec11e Series Plug-in Rotary Encoder Single Shaft Knurled Switch Electronic Component

FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.

2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.

3.What is your shipping port and the term of payment ?

Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)

4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.

5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.

6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.
